Rotonic 300
The Rotonic is a fully biological recycling system for car and truck wash waste water, for 100% reuse.
The waste water gets cleaned in 3 steps:
- Particle grinding by grinder pumps;

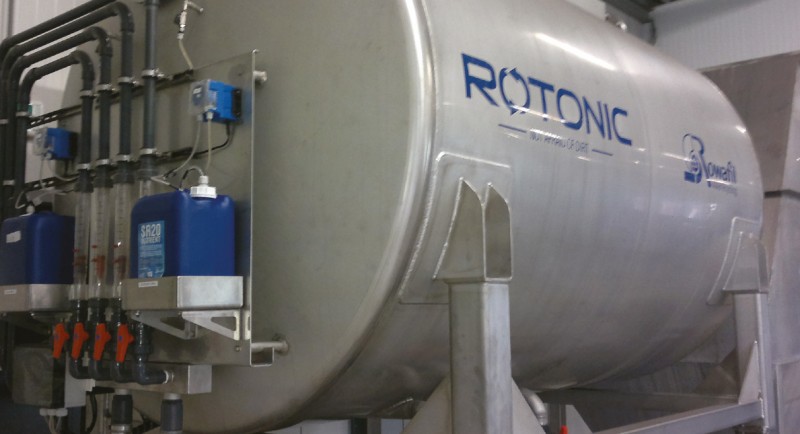

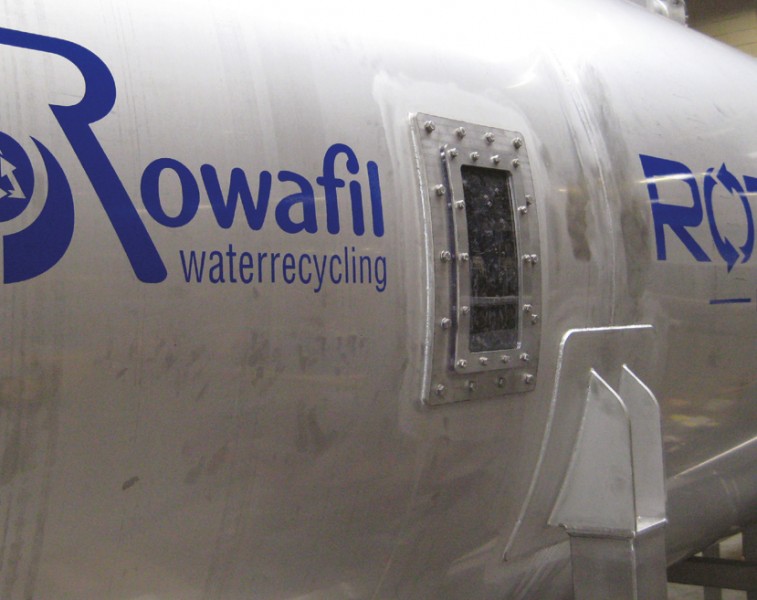

- Biodegradation of all organic waste (shampoo’s, waxes, oil, grease i.e.) by the rotating bioreactor.

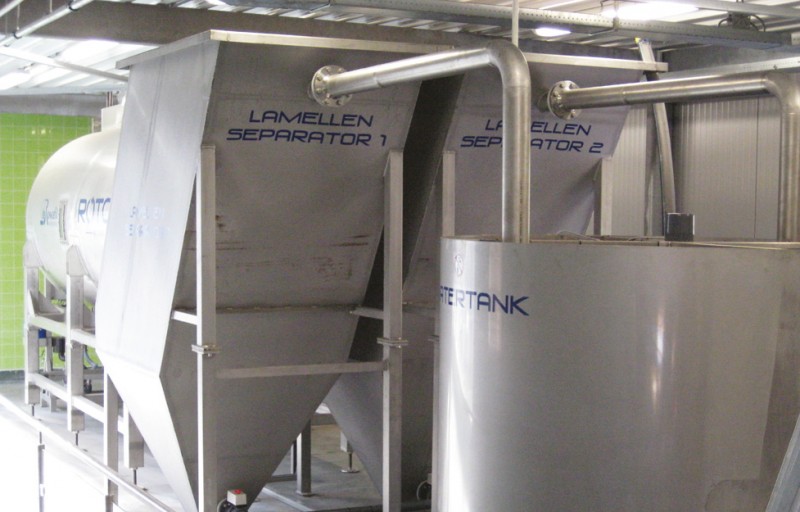

- Separation of floating particles, also bio flocks, by a plate separator.
All components for the above mentioned steps are included in the Rotonic package.
Scope of supply
For the pump pit
- 2 Grinder pumps cut all big parts in the water and pump the water above ground (excluding 2 x 10 meters of 50 mm water hose, including 2 x 10 meters of electric cable).
- 1 Float switch. The grinder pumps low water security (including 10 meters electric cable).
The grinder pumps pump the water straight into the rotation bioreactor. The first pump works 24 hours a day, 7 days a week. The second pump is automatically turned on if there is a bigger demand than 15,000 liters per hour. Frequency controlled.
Rotonic components frame:
- 2 low pressure air blowers, each 60,000 liters per hour, including air filters. One blower for aeration of the bio reactor, the second for creating the right rotation inside the reactor.
- 2 Air separation blocks for the aeration and rotation section.
- 2 x 2 Air flow meters with valve for setting the air flow to both compartments of the aeration and rotation section.
- 2 Water pressure meters in Bar for reading the water pressure of the grinder pumps.
- 1 Control cabinet with main switch, including all necessary components and check lights.
- 1 Nutrient can tray, INOX, mounted on the left of the frame.
- 1 Antifoam van tray, INOX, mounted on the right of the frame.
- 2 Nutrient cans (1 spare) of 10 liters (Rowafil SR20 Nutrient) for continuing stimulation and nourishment of the biological process. Use is 1 can per month.
- 2 Antifoam cans (1 spare) of 10 liters.
- 1 Nutrient dosing pump mounted on to the INOX nutrient can tray.
- 1 Antifoam dosing pump mounted on to the INOX antifoam can tray.
Brand: | Rowafil Rotonic |
Type: | Rotonic 300 |
Capacity: | 30.000 ltr/hour / 8000 GPH |
Bioreactor: | 1 rotation bioreactor with attached control panel |
Plate separator: | 1 |
Floor dimensions: | 7000x1800x3200H mm |
Sludge pit: | 30000 ltr. minimum |
Pump pit: | 10000 ltr. minimum |
Recycle water tank/pit: | 10000 ltr. |
Power supply: | 8 kW max (frequency controlled) |
SR20 nutrient consumption: | 10 ltr. per month |
